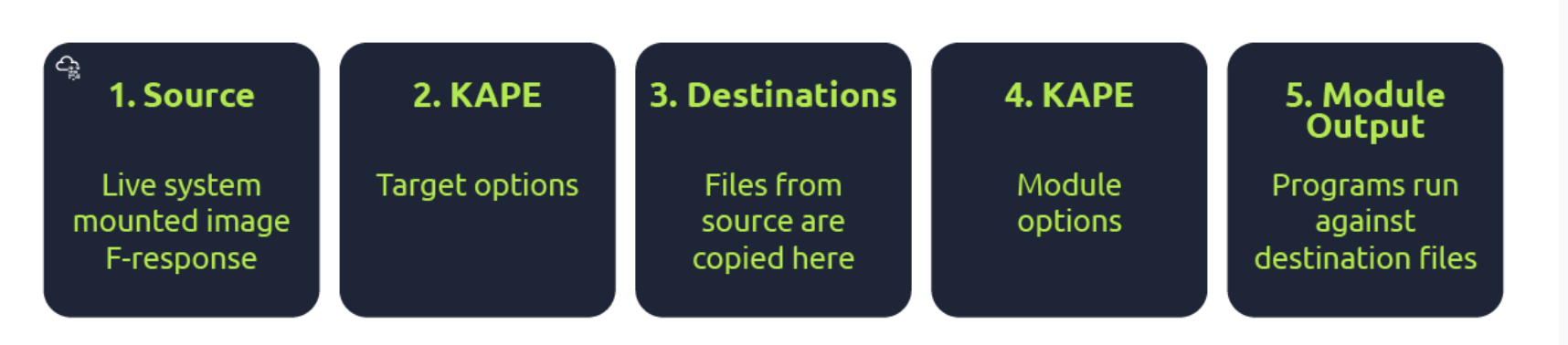

Kroll Artifact Parser and Extractor (KAPE) parses and extracts Windows forensics artifacts. KAPE serves two primary purposes:
- collect files
- process the collected files as per the provided options.
The collection of files (targets) KAPE adds the files to a queue and copies them in two passes. In the first pass, it copies the files that it can. This works for files that the OS has not locked. The rest of the files are passed to a secondary queue. The secondary queue is processed using a different technique that uses raw disk reads to bypass the OS locks and copy the files. The copied files are saved with original timestamps and metadata and stored in a similar directory structure.
Targets are the artifacts that need to be collected from a system or image and copied to our provided destination. For example, Windows Prefetch is a forensic artifact for evidence of execution so that we can create a Target for it. Similarly, we can also create Targets for the registry hives. In short, Targets copy files from one place to another.

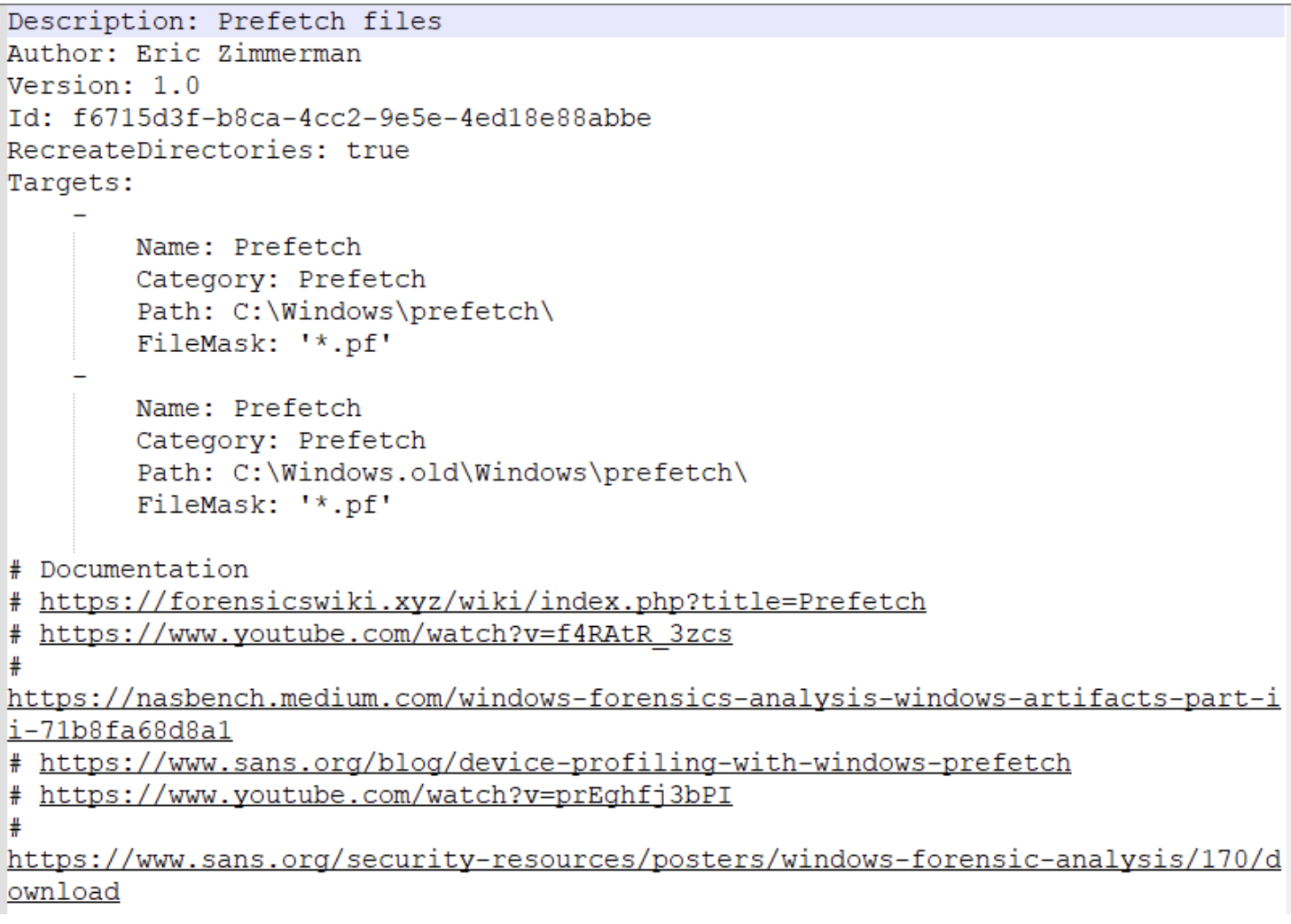

Target is defined for KAPE with a TKAPE file which contains information about the artifact that we want to collect, such as the path, category, and file masks to collect. As an example, below is how the Prefetch Target is defined.
^ This TKAPE file tells KAPE to collect files with the file mask *.pf from the path C:\Windows\prefetch and C:\Windows.old\prefetch.
Compound Targets - KAPE also supports Compound Targets. These are Targets that are compounds of multiple other targets. As mentioned in the previous tasks, KAPE is often used for quick triage collection and analysis. The purpose of KAPE will not be fulfilled if we have to collect each artifact individually. Therefore, Compound Targets help us collect multiple targets by giving a single command. Examples of Compound Targets include !BasicCollection, !SANS_triage and KAPEtriage. We can view the Compound Targets on the path KAPE\Targets\Compound. The following image shows what a Compound Target for evidence of execution looks like:
^ The above Compound Target will collect evidence of execution from Prefetch, RecentFileCache, AmCache, and Syscache Targets.
If you have created some Targets that you don’t want to sync with the KAPE Github repository, you can place them in the !Local directory. These can be Targets that are specific to your environment.
Module Options
Modules, in KAPE’s lexicon, run specific tools against the provided set of files.
- Runs the commands and stores the output as TXT or CSV

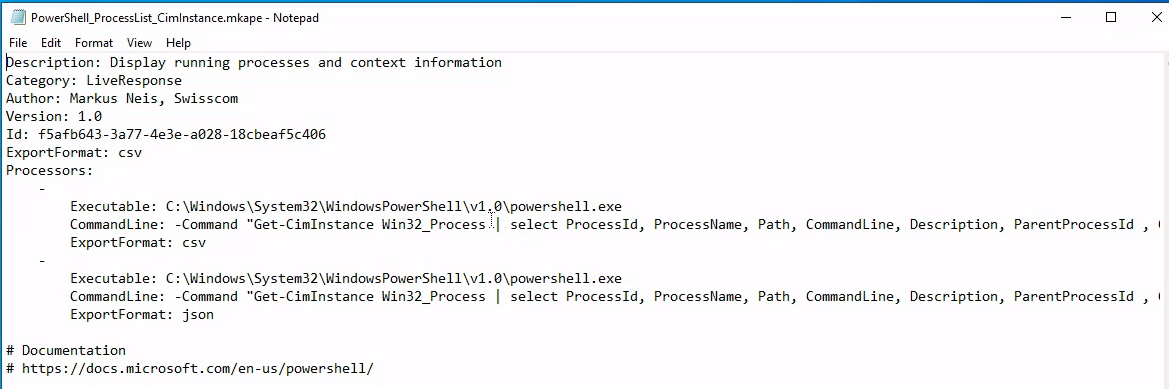

Files with the .mkape extension are understood as Modules by KAPE
The bin directory contains executables that we want to run on the system but are not natively present on most systems. KAPE will run executables either from the bin directory or the complete path. An example of files to be kept in the bin directory are Eric Zimmerman’s tools, which are generally not present on a Windows system.
This is important because each of the .mkape files contains information that includes an executable and what we want it to do. So we may need additional executables that are not present on the system.
KAPE GUI
KAPE CLI
We can see from the above screenshot that while collecting Targets, the switches tsource, target and tdest are required. Similarly, when processing files using Modules, module and mdest are required switches. The other switches are optional as per the requirements of the collection.
D:\KAPE>kape.exe
KAPE version 1.1.0.1 Author: Eric Zimmerman (kape@kroll.com)
tsource Target source drive to copy files from (C, D:, or F:\ for example)
target Target configuration to use
tdest Destination directory to copy files to. If --vhdx, --vhd or --zip is set, files will end up in VHD(X) container or zip file
tlist List available Targets. Use . for Targets directory or name of subdirectory under Targets.
tdetail Dump Target file details
tflush Delete all files in 'tdest' prior to collection
tvars Provide a list of key:value pairs to be used for variable replacement in Targets. Ex: --tvars user:eric would allow for using %user% in a Target which is replaced with eric at runtime. Multiple pairs should be separated by ^
tdd Deduplicate files from --tsource (and VSCs, if enabled) based on SHA-1. First file found wins. Default is TRUE
msource Directory containing files to process. If using Targets and this is left blank, it will be set to --tdest automatically
module Module configuration to use
mdest Destination directory to save output to
mlist List available Modules. Use . for Modules directory or name of subdirectory under Modules.
mdetail Dump Module processors details
mflush Delete all files in 'mdest' prior to running Modules
mvars Provide a list of key:value pairs to be used for variable replacement in Modules. Ex: --mvars foo:bar would allow for using %foo% in a module which is replaced with bar at runtime. Multiple pairs should be separated by ^
mef Export format (csv, html, json, etc.). Overrides what is in Module config
sim Do not actually copy files to --tdest. Default is FALSE
vss Process all Volume Shadow Copies that exist on --tsource. Default is FALSE
vhdx The base name of the VHDX file to create from --tdest. This should be an identifier, NOT a filename. Use this or --vhd or --zip
vhd The base name of the VHD file to create from --tdest. This should be an identifier, NOT a filename. Use this or --vhdx or --zip
zip The base name of the ZIP file to create from --tdest. This should be an identifier, NOT a filename. Use this or --vhdx or --vhd
scs SFTP server host/IP for transferring *compressed VHD(X)* container
scp SFTP server port. Default is 22
scu SFTP server username. Required when using --scs
scpw SFTP server password
scd SFTP default directory to upload to. Will be created if it does not exist
scc Comment to include with transfer. Useful to include where a transfer came from. Defaults to the name of the machine where KAPE is running
s3p S3 provider name. Example: spAmazonS3 or spGoogleStorage. See 'https://bit.ly/34s9nS6' for list of providers. Default is 'spAmazonS3'
s3r S3 region name. Example: us-west-1 or ap-southeast-2. See 'https://bit.ly/3aNxXhc' for list of regions by provider
s3b S3 bucket name
s3k S3 Access key
s3s S3 Access secret
s3st S3 Session token
s3kp S3 Key prefix. When set, this value is used as the beginning of the key. Example: 'US1012/KapeData'
s3o When using 'spOracle' provider, , set this to the 'Object Storage Namespace' to use
s3c Comment to include with transfer. Useful to include where a transfer came from. Defaults to the name of the machine where KAPE is running
s3url S3 Presigned URL. Must be a PUT request vs. a GET request
asu Azure Storage SAS Uri
asc Comment to include with transfer. Useful to include where a transfer came from. Defaults to the name of the machine where KAPE is running
zv If true, the VHD(X) container will be zipped after creation. Default is TRUE
zm If true, directories in --mdest will be zipped. Default is FALSE
zpw If set, use this password when creating zip files (--zv | --zm | --zip)
hex Path to file containing SHA-1 hashes to exclude. Only files with hashes not found will be copied
debug Show debug information during processing
trace Show trace information during processing
gui If true, KAPE will not close the window it executes in when run from gkape. Default is FALSE
ul When using _kape.cli, when true, KAPE will execute entries in _kape.cli one at a time vs. in parallel. Default is FALSE
cu When using _kape.cli, if true, KAPE will delete _kape.cli and both Target/Module directories upon exiting. Default is FALSE
sftpc Path to config file defining SFTP server parameters, including port, users, etc. See documentation for examples
sftpu When true, show passwords in KAPE switches for connection when using --sftpc. Default is TRUE
rlc If true, local copy of transferred files will NOT be deleted after upload. Default is FALSE
guids KAPE will generate 10 GUIDs and exit. Useful when creating new Targets/Modules. Default is FALSE
sync If true, KAPE will download the latest Targets and Modules from specified URL prior to running. Default is https://github.com/EricZimmerman/KapeFiles/archive/master.zip
ifw If false, KAPE will warn if a process related to FTK is found, then exit. Set to true to ignore this warning and attempt to proceed. Default is FALSE
Variables: %d = Timestamp (yyyyMMddTHHmmss)
%s = System drive letter
%m = Machine name
Examples: kape.exe --tsource L: --target RegistryHives --tdest "c:\temp\RegistryOnly"
kape.exe --tsource H --target EvidenceOfExecution --tdest "c:\temp\default" --debug
kape.exe --tsource \\server\directory\subdir --target Windows --tdest "c:\temp\default_%d" --vhdx LocalHost
kape.exe --msource "c:\temp\default" --module LECmd --mdest "c:\temp\modulesOut" --trace --debug
Short options (single letter) are prefixed with a single dash. Long commands are prefixed with two dashes
Full documentation: https://ericzimmerman.github.io/KapeDocs/
